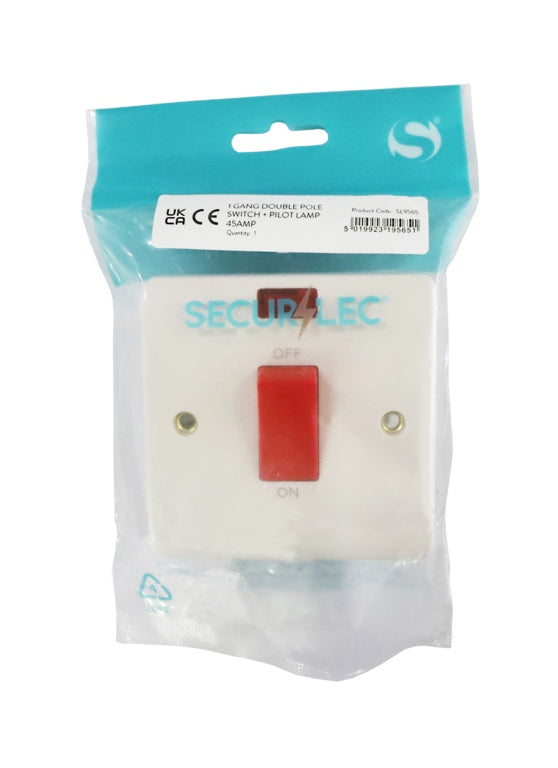

Securlec 1 Gang Double Pole Switch & Pilot Light Round Edge
by Securlec
Save 44%
Original Price
£10.99
Current Price
£6.16
- 45 Amp
- 86 x 86mm
- Associated standards: BS EN 60669-1
- Rated voltage: 250V
- Rated current: 45A
- Frequency: 50-60Hz
- Wiring system: 2 pole
- Min. switch contact gap: >3 mm
- Ambient operating temperature: -5 to 40C (24hour average not exceeding25C)
- Degree of protection: IP20
- Terminal capacity: 3 x 6mm2 or 1 x 10mm2or 1 x 16mm2
- Face plate material: urea-formaldehyde
- Minimum wall box depth: 35
- Nature of supply: AC
- Fixing screws: M3.5x30mm
- Max Installation Altitude 2000 meters
- Heavily embossed terminal marking for clear terminal identification
- Top access, Large angled terminals make wiring easier and quicker
- Dual earth terminals
- Only one size screwdriver required for installation
- Fixing screws maintained by earth strap
- Contoured to blend into the wall
- Double pole switching
